 性能指标 |
| |
性能 |
Min. |
Typ. |
Max. |
补充 |
光学特性 |
工作波长范围 |
(nm) |
1280 |
|
1620 |
MR30-20 |
1280 |
|
1580 |
MR30-22 |
1480 |
|
1620 |
MR30-40, 50, 70, 100 |
| 响应度 |
(A/W) |
0.4 |
0.5 |
|
MR30-100, 50B |
0.5 |
0.6 |
|
MR30-50A, 70 |
0.6 |
0.7 |
|
MR30-40 |
0.7 |
0.8 |
|
MR30-22 |
0.8 |
0.9 |
|
MR30-20 |
| 暗电流 |
(nA) |
|
5 |
50 |
|
| 偏振相关损耗 |
(dB) |
|
0.6 |
1.0 |
MR30-40B |
| |
0.7 |
1.1 |
MR30-50B |
| |
0.3 |
0.5 |
MR30-70, 50A |
| |
0.5 |
0.8 |
MR30-100 |
| 输入光功率范围 |
(dBm) |
-20 |
|
10 |
MR30-20, 22 |
-20 |
|
13 |
MR30-40, 50, 70, 100 |
| 光反射损耗 |
(dB) |
40 |
|
|
|
| 光纤连接器 |
|
SC/APC |
可选FC/APC, LC/APC |
RF特性 |
最高频率 (-3dB截止频率) |
(GHz) |
20 |
|
|
MR30-20 |
22 |
|
|
MR30-22 |
40 |
45 |
|
MR30-40 |
48 |
55 |
|
MR30-50 |
68 |
75 |
|
MR30-70 |
90 |
95 |
|
MR30-100 |
| -3dB最低频率 |
(KHz) |
|
40 |
|
|
| 带内起伏 |
(dB) |
|
|
±1.0 |
<20GHz |
| |
|
±2.0 |
22~70GHz |
| |
|
±2.5 |
100GHz |
| RF反射损耗 |
(dB) |
8 |
10 |
|
|
| 脉冲宽度 |
(ps) |
|
10 |
12 |
MR30-40 |
| |
9 |
10 |
MR30-50 |
| |
7.5 |
8.0 |
MR30-70, 100 |
| 输出阻抗 |
(Ω) |
|
50 |
|
|
| 输出藕合器 |
|
|
DC |
|
|
| RF输出连接器 |
|
SMA-F或K-connector |
|
通用特性 |
通信接口 |
|
RS232 |
MX, P3 |
| 网管接口 |
|
RJ45 |
|
| 供电 |
220VAC |
(V) |
90 |
220 |
265 |
1RU, 3RU, 2D |
-48VDC |
-30 |
-48 |
-72 |
1RU, 3RU |
+12VDC |
+11 |
+12 |
+12.5 |
MX |
| 功耗 |
(W) |
|
|
5 |
单个插件或模块 |
| 工作温度 |
(℃) |
-40 |
|
+65 |
|
| 储存温度 |
(℃) |
-40 |
|
+85 |
|
| 相对湿度 |
(%) |
5 |
|
95 |
|
| 尺寸 |
1U |
|
19×11.0×1.75 ( " )
483×279×44 ( mm ) |
19"机架 |
3U |
|
19×14.5×5.25 ( " )
483×368×133 ( mm ) |
2D |
|
12.4×13.0×3.5 ( " )
315×330×89 ( mm ) |
桌面式 |
MX |
|
5.7×3×1.1 ( " )
145×75×28 ( mm ) |
模块式 |
|
|
| 产品系列 |
| |
型号 |
最高频率 |
响应度 |
PDL |
RF输出特性 |
外型 |
光连接器 |
MR30-20A-S-K/DC |
20GHz |
>0.8A/W |
≤0.3dB |
单端口输出, Z=50ΩK-connector, DC coupled |
1U, 3U, 2D, MX, 3P 可选 |
SC/APC, 可选FC/APC, LC/APC |
MR30-22A-S-K/DC |
22GHz |
>0.7A/W |
≤0.3dB |
MR30-40B-S-K/DC |
40GHz |
>0.6A/W |
<1.0dB |
MR30-50A-S-K/DC |
50GHz |
>0.65A/W |
<0.5dB |
MR30-50B-S-K/DC |
50GHz |
>0.4A/W |
<1.1dB |
MR30-70A-S-K/DC |
70GHz |
>0.6A/W |
<0.85dB |
MR30-100A-S-K/DC |
100GHz |
>0.5A/W |
<0.8dB |
注：具体产品请按型号解释订货 |
|

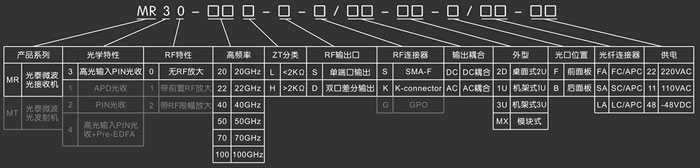

型号解释 |
| |

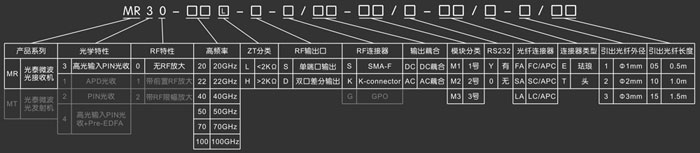

 1U, 3U, 2D型号解释 模块式型号解释 注：灰色部分为该产品系列产品其他产品的选项。该产品一般不提供灰色部分的选项。 |
|
| |
|
|
