 性能指标 |
| |
性能 |
Min. |
Typ. |
Max. |
补充 |
光学特性 |
工作波长 |
(nm) |
1290 |
1310 |
1320 |
B类: 1310nm |
1528 |
|
1564 |
C类: C-Band |
1570 |
|
1605 |
L类: L-Band |
1528 |
|
1605 |
T类: ITU-T 100GHz |
| 波长调节范围 |
(nm) |
-1.6 |
|
+1.6 |
T类(ITU-T) |
| 波长调节模式 |
|
In steps ±0.01nm |
T类(ITU-T) |
| 波长稳定度 |
(Pm/℃) |
-1 |
|
0 |
TC=20~70℃ |
| 输出光功率 |
(dBm) |
-2.0 |
|
+2.0 |
|
| SBS阈值 |
(dBm) |
|
|
+6.0 |
S06: 6dBm |
| |
|
+13.0 |
S13: 6&13dBm adj. |
| 光链路预算损耗 |
(dB) |
|
18 |
|
PIN (MR22) |
| |
26 |
|
APD (MR12) |
| 边模抑制比 |
(dB) |
35 |
45 |
|
|
| 光隔离度 |
(dB) |
30 |
|
|
|
| 消光比 |
(dB) |
8.2 |
|
|
B类: 1310nm |
10.0 |
|
|
C类: C-Band |
15 |
|
|
MT62-33C |
| 上升时间(10~90%) |
(ps) |
|
25 |
35 |
|
| 下降时间 (10~90%) |
(ps) |
|
35 |
45 |
|
| 光反射损耗 |
(dB) |
40 |
|
|
|
| 光连接器 |
|
SC/APC |
可选FC/APC, LC/APC |
RF特性 |
最高频率(cut-off -3dB) |
(GHz) |
6.0 |
|
|
MT62-06 |
10.0 |
|
|
MT62-10 |
13.0 |
|
|
MT62-13 |
15.0 |
|
|
MT62-15 |
18.0 |
|
|
MT62-18 |
20.0 |
|
|
MT62-20 |
33.0 |
|
|
MT62-33 |
| -3dB最低频率 |
(KHz) |
|
40 |
|
|
| 带内起伏 |
(dB) |
|
|
±1.5 |
≤13GHz |
| |
|
±2.5 |
15~18GHz |
| |
|
±3.0 |
20GHz |
| |
|
±3.5 |
>20GHz |
| RF噪声系数 |
(dB) |
|
8 |
11 |
|
| RF输入范围 |
(dB) |
-60 |
|
-30 |
|
| 输出1dB压缩(P1dB) |
(dB) |
17 |
18 |
|
6GHz |
20 |
22 |
|
>6GHz |
| 输出三阶互调(IP3) |
(dB) |
30 |
35 |
|
6GHz |
25 |
30 |
|
>6GHz |
| RF输入驻波比(VSWR) |
(dB) |
|
1.6：1 |
1.9：1 |
10GHz |
| |
1.9：1 |
2.5：1 |
13~15GHz |
| |
2.5：1 |
3.0：1 |
18~20GHz |
| RF输入阻抗 |
(Ω) |
|
50 |
|
|
| 内置RF藕合 |
|
|
AC |
|
|
| RF输出连接器 |
|
K-connector |
|
通用特性 |
通信接口 |
|
RS232 |
|
| 网管接口 |
|
RJ45 |
|
| 供电 |
220VAC |
(V) |
90 |
220 |
265 |
1RU, 3RU, 2D |
-48VDC |
-30 |
-48 |
-72 |
1RU, 3RU |
+12VDC |
+11 |
+12 |
+12.5 |
MX |
| 功耗 |
(W) |
|
|
8 |
单个插件或模块 |
| 工作温度 |
(℃) |
-10 |
|
+65 |
|
| 存储温度 |
(℃) |
-40 |
|
+85 |
|
| 相对湿度 |
(%) |
5 |
|
95 |
|
| 尺寸 |
1U |
|
19×11.0×1.75 ( " )
483×279×44 ( mm ) |
19"机架 |
3U |
|
19×14.5×5.25 ( " )
483×368×133 ( mm ) |
2D |
|
12.4×13.0×3.5 ( " )
315×330×89 ( mm ) |
桌面式 |
M1 |
|
5.7×3×1.1 ( " )
145×75×28 ( mm ) |
带RS232模块 |
M2 |
|
2.8×1.77×0.63 ( " )
70×45×16 ( mm ) |
不带RS232模块 |
|
|
| 产品系列 |
| |
型号 |
带宽 |
工作波长 |
输出光功率 |
激光器类型 |
输出特性 |
MT62-06-B00-K/AC |
40KHz~6.0GHz |
1310nm (1290~ 1320nm) |
-2~+2dBm (Vm≠OV) |
EML (EA-DFB laser) |
K-connector连接器AC藕合，无RF Amp |
MT62-10-B00-K/AC |
40KHz~10.0GHz |
MT62-13-B00-K/AC |
40KHz~13.0GHz |
MT62-15-B00-K/AC |
40KHz~15.0GHz |
MT62-18-B00-K/AC |
40KHz~18.0GHz |
MT62-06-C00-K/AC |
40KHz~6.0GHz |
C-Band (1528~ 1564nm) |
-2~+2dBm (Vm≠OV) |
EML (EA-DFB laser) |
K-connector连接器AC藕合，无RF Amp |
MT62-10-C00-K/AC |
40KHz~10.0GHz |
MT62-13-C00-K/AC |
40KHz~13.0GHz |
MT62-15-C00-K/AC |
40KHz~15.0GHz |
MT62-18-C00-K/AC |
40KHz~18.0GHz |
MT62-20-C00-K/AC |
40KHz~20.0GHz |
MT62-33-C00-K/AC |
40KHz~33.0GHz |
MT62-06-L00-K/AC |
40KHz~6.0GHz |
L-Band (1570~ 1605nm) |
-2~+2dBm (Vm≠OV) |
EML (EA-DFB laser) |
K-connector连接器AC藕合，无RF Amp |
MT62-10-L00-K/AC |
40KHz~10.0GHz |
MT62-13-L00-K/AC |
40KHz~13.0GHz |
MT62-15-L00-K/AC |
40KHz~15.0GHz |
MT62-06-T00-K/AC |
40KHz~6.0GHz |
ITU-T (1528~ 1605nm) 可调 |
-2~+2dBm (Vm≠OV) |
EML (EA-DFB laser) |
K-connector连接器AC藕合，无RF Amp |
MT62-10-T00-K/AC |
40KHz~10.0GHz |
MT62-13-T00-K/AC |
40KHz~13.0GHz |
MT62-15-T00-K/AC |
40KHz~15.0GHz |
注：1、具体产品请按型号解释订货
2、SBS阈值可选：S06: 6dBm, S13: 6dBm和13dBm可调
|
|

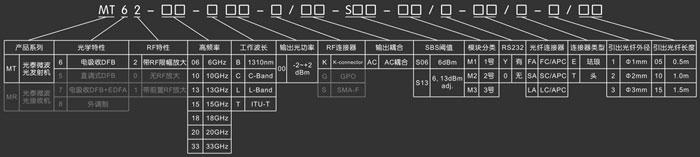

型号解释 |
| |

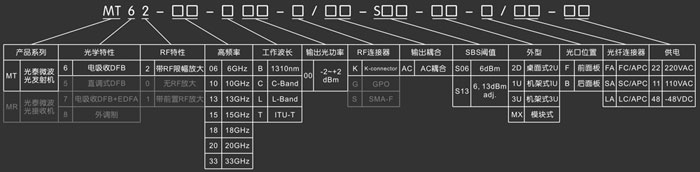

 1U, 3U, 2D型号解释 模块式型号解释 注：灰色部分为该产品系列产品其他产品的选项。该产品一般不提供灰色部分的选项。 |
|
| |
|
|
